3'' TANKFLY™ motýlová klapka se svěrkou
.jpg)

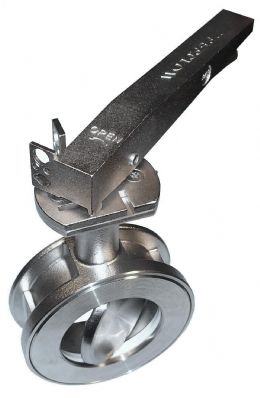

Motýlová klapka TANKFLY™ 3'' se připevňuje mezi obrubně nebo přímo na trubku.
TANKFLY clamped butterfly valve:
Specification sheet, Installation sheet, Maintenance sheet
Features:
• Full 316L stainless steel construction.
• Compact design.
• Design temperature: -40°C to +190°C.
• Light weight: 3,25kg.
• Working pressure: 6 bar.
• Test pressure: 9 bar.
• PTFE seals
• Clockwise and anti-clockwise operation versions available.
• Optional semi-spherical butterfly
• Optional locking handle
• Conforms to IMDG, ADR and RID standards
• Lloyd’s Register approval.
Ordering and coding information:
|
DESCRIPTION |
Part Number |
| Handle kit (316L/1.4404) | 11.12.07.92.00 |
| Plane spring kit (304/1.4301) | 12.85.58.91.00 |
| Handle lever kit (316L/1.4404) | 11.12.07.93.00 |
| Spindle seals kit | 12.85.57.96.00 |
| Spindle baring kit (PTFE & Glass 25%) | 12.85.57.98.00 |
| Spindle kit (316L/1.4404) | 12.85.57.97.00 |
| Closure plate kit | 12.85.57.93.00 |
| Spherical closure plate kit | 11.12.62.93.00 |
| Closure plate seal (PTFE) | 12.85.57.94.00 |
| Closure flange (316L/1.4404) | 12.85.57.95.00 |
Other product options are available. Please contact Perolo for details.
